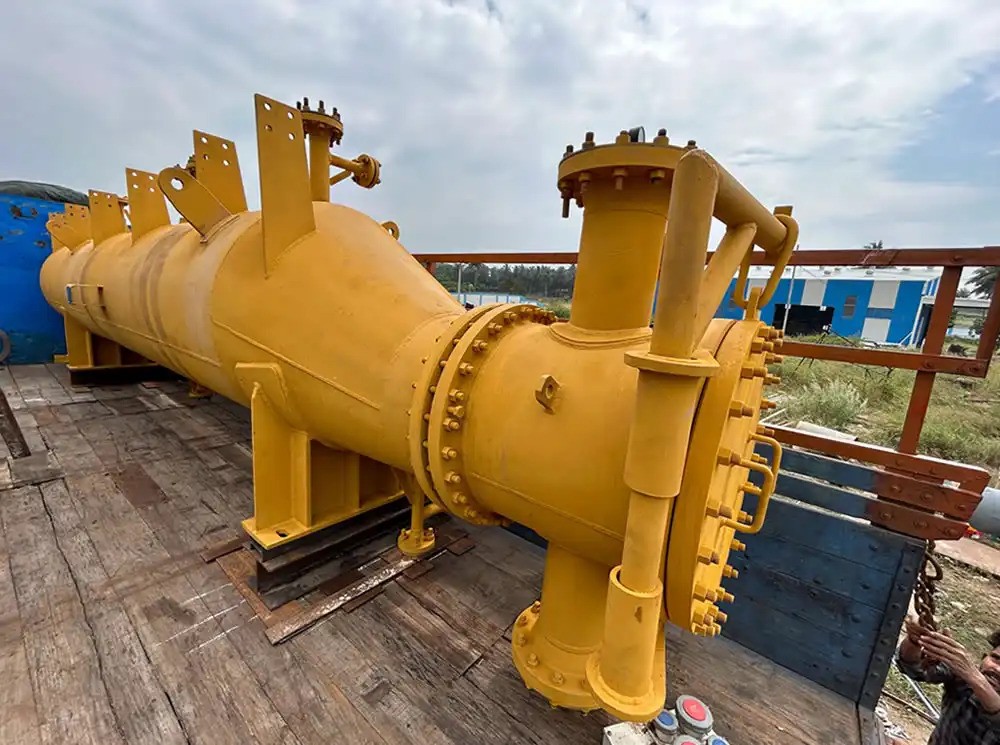

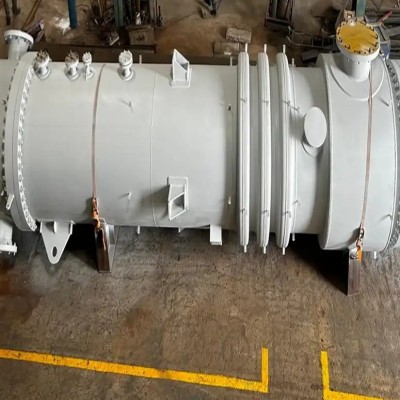

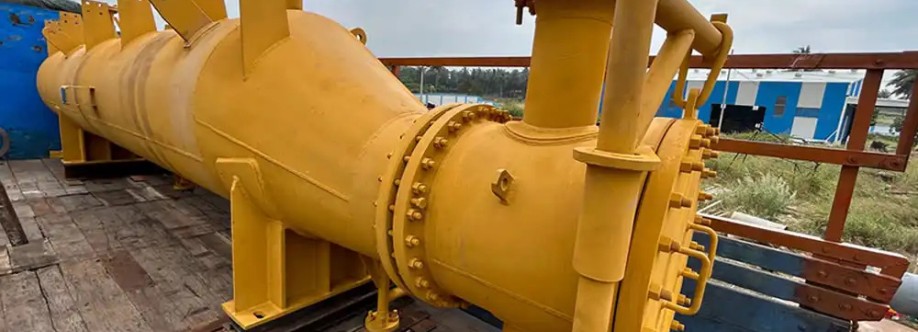

Shell and tube heat exchanger with an expansion bellow is a specialized type of heat exchanger designed to accommodate thermal expansion and contraction during operation. This type of heat exchanger consists of a shell, typically cylindrical in shape, containing a bundle of tubes. An expansion bellow, also known as an expansion joint, is incorporated into the design to absorb the thermal expansion and contraction of the tubes as the temperature of the fluid inside them fluctuates.
How Shell and Tube Heat Exchangers with Expansion Bellow Work
In a shell and tube heat exchanger with an expansion bellow, one fluid flows through the tubes while the other fluid circulates around the tubes in the shell. As the temperature of the fluid inside the tubes changes, the tubes expand or contract. The expansion bellow, typically located at one end of the heat exchanger, absorbs these thermal movements, allowing the tubes to expand and contract freely without causing damage to the heat exchanger or compromising its structural integrity.
Advantages of Shell and Tube Heat Exchangers with Expansion Bellow
Thermal Expansion Management: The incorporation of an expansion bellow allows the heat exchanger to accommodate thermal expansion and contraction, reducing the risk of damage due to temperature fluctuations.
Extended Service Life: By minimizing thermal stresses on the heat exchanger components, shell and tube heat exchangers with expansion bellows can have an extended service life compared to rigid designs.
Flexibility in Design: The use of expansion bellows provides greater flexibility in the design of shell and tube heat exchangers, allowing for the accommodation of a wider range of operating conditions and thermal loads.
Reduced Maintenance: By reducing the risk of thermal fatigue and stress-related failures, shell and tube heat exchangers with expansion bellows require less frequent maintenance and repair, resulting in reduced downtime and operating costs.
